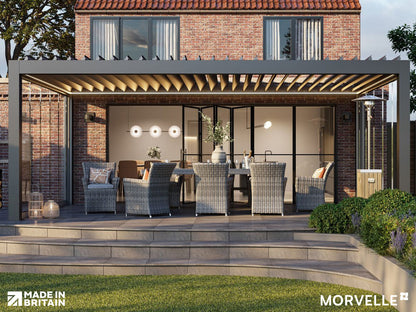

Made-To-Measure Bioclimatic Pergola Range
A premium, specification-ready system for complex layouts, larger spans and full design control.
Notes:
All sizes above have 4 posts. Maximum height is 3m.
If end-on-end or side by side configurations are required, please include the width and length in your message, so we can quote for the price of the additional structure.
Quoted prices include:
• Any Huescape™ colour
• Seamless integrated warm white LED lighting on all four sides
• 24V motor and power unit
•
Either Wireless Remote Control or Hale™ Control Buttons
• Integrated back-lit controls
•
5-year structural warranty
•
2-year electrical warranty
Available Extras & Indicative Prices
| Custom RAL* Louvres / Frame / All | +5%/ +10% / + 15% |
| Infra-red heater 1.8kw | +£175 |
| Infra-red heater control unit max 2kw | +£200 |
| Motorised zip screen blinds control unit for up to four blinds | +£230 |
| Rain & snow sensor opens louvres when raining or snowing | +£200 |
| Wind sensor opens louvres when windy | +£200 |
| RGB LED perimeter strip lighting to all four sides | +£800 |
| Louvre Sides | From £694 |
| Zip Screen | From £1366 |
| Glass Fixed Panels | From £1002 |
| Sliding Glass Panels | From £1311 |
Collapsible content
Sizes
Width: 1000mm - 4500mm bespoke to mm
Length: 1690mm - 6010mm dictated by width of a louvre (216mm)
Height: Up to 3000mm bespoke to mm
Material
Highest grade 6063-T6 Aluminium, stainless steel fixings
Certifications & Accreditations
Designed & Made in Britain
Tested to Wind Class 6
Snow Zone 3
Load tested to BS EN1991-1-3:2003
Certified for structural safety (BS EN 1090) and environmentally responsible practices (ISO 14001)
Warranty
We stand behind every pergola we manufacture with confidence, offering you peace of mind with our comprehensive warranty. Should any issues arise, rest assured that we are here to support you with prompt service and reliable solutions. Our guarantee ensures that your investment is protected, so you can enjoy your new pergola with total confidence.
| Pergola Structure | 5 years |
| Electrical Components | 2 years |
| Zip Blinds | 2 years |
| Louvred Aluminium Panels | 10 years |
| Solid Aluminium Panels | 10 years |
| Glazed Panels | 10 years |
| Sliding Glass Doors | 10 years |
Electrical
24V Motor controlled via Halo Control Buttons or wireless remote
IP-rated continuous perimeter warm white LED lighting
Colour & Finish
Smooth matte powder coated in any Huescape™ colour
Qualicoat certified for long lasting durability
RAL colours also available
Optional Sensors
Rain & Snow - closes louvres when conditions worsen.
Wind - opens louvres when windy to reduce uplift.
Compatible Accessories
Sliding or fixed glass panels
Zip screen blinds
Sliding glass doors
Aluminium louvred panels
Aluminium solid panels
Infrared heaters
See detailed information about each of the accessories further down this page.
Delivery & installation
Delivery is £300 exc. vat across the UK. Installation is available on request and based on your purchase, location and access to the proposed pergola location on the property.

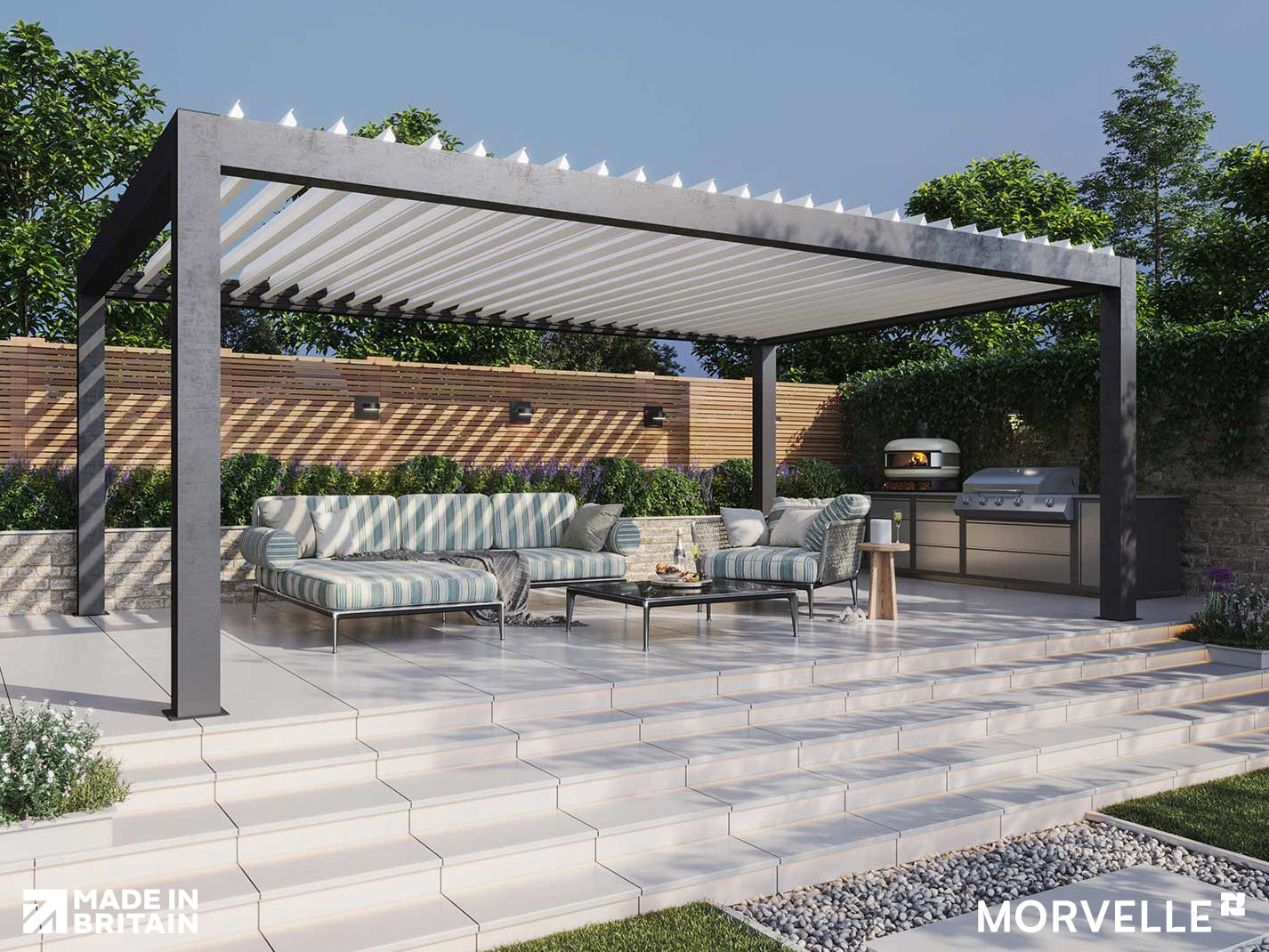

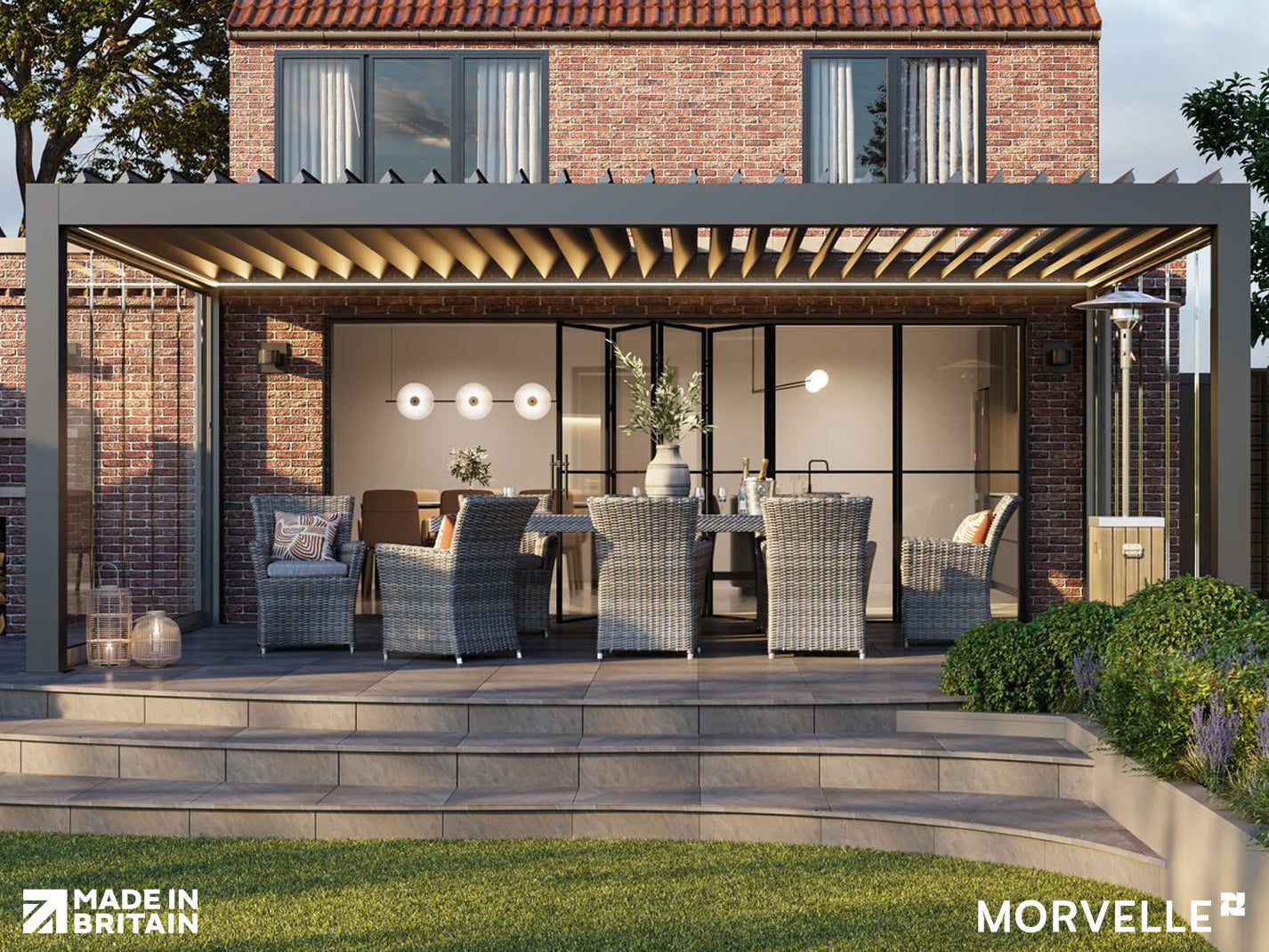

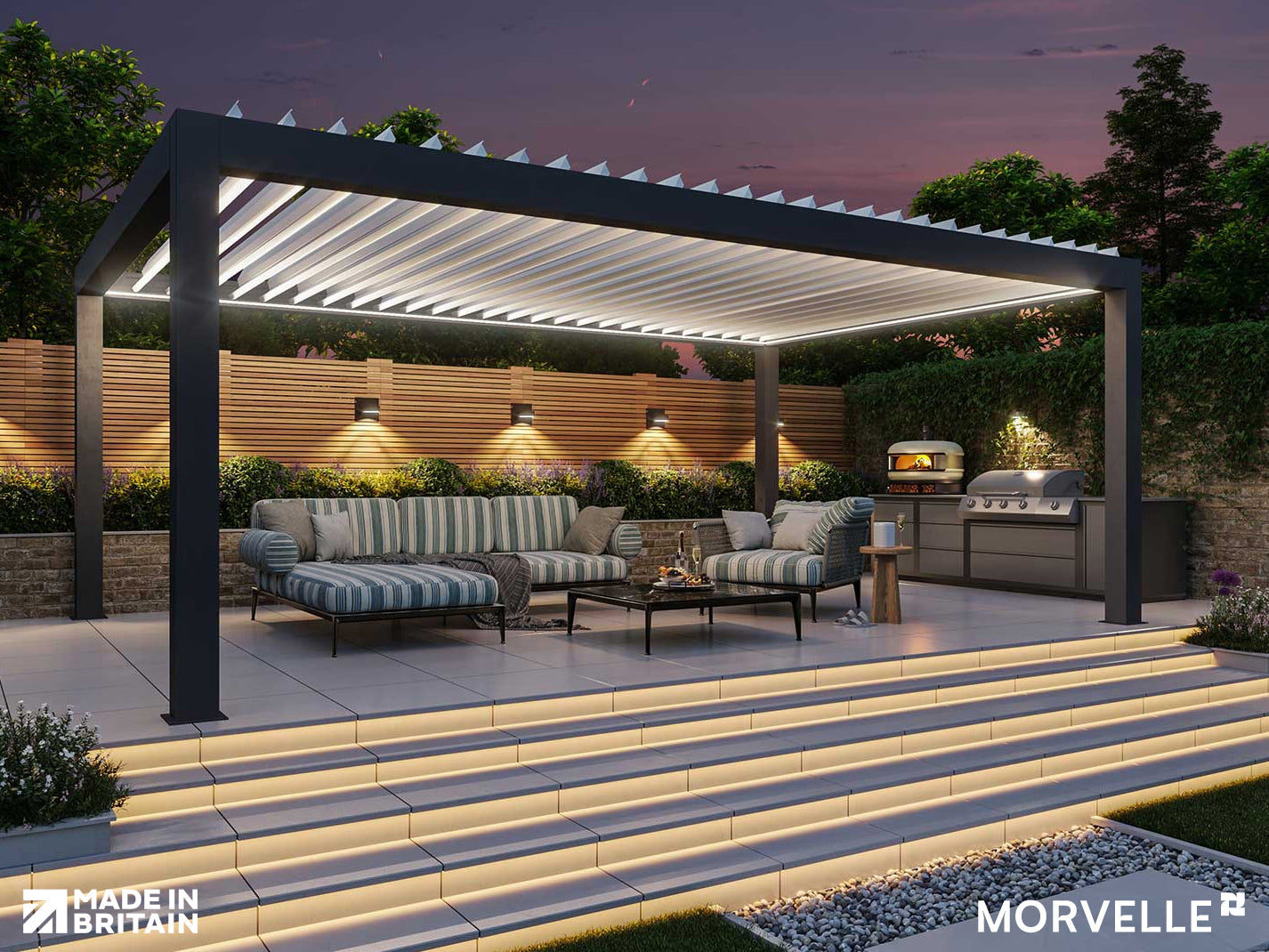

Premium Custom-Built Aluminium Pergolas
Looking for a solution that works perfectly, come rain or shine?
Our premium aluminium pergolas are designed to give you complete control over ventilation, light, and shade - helping you create the perfect atmosphere for any occasion.

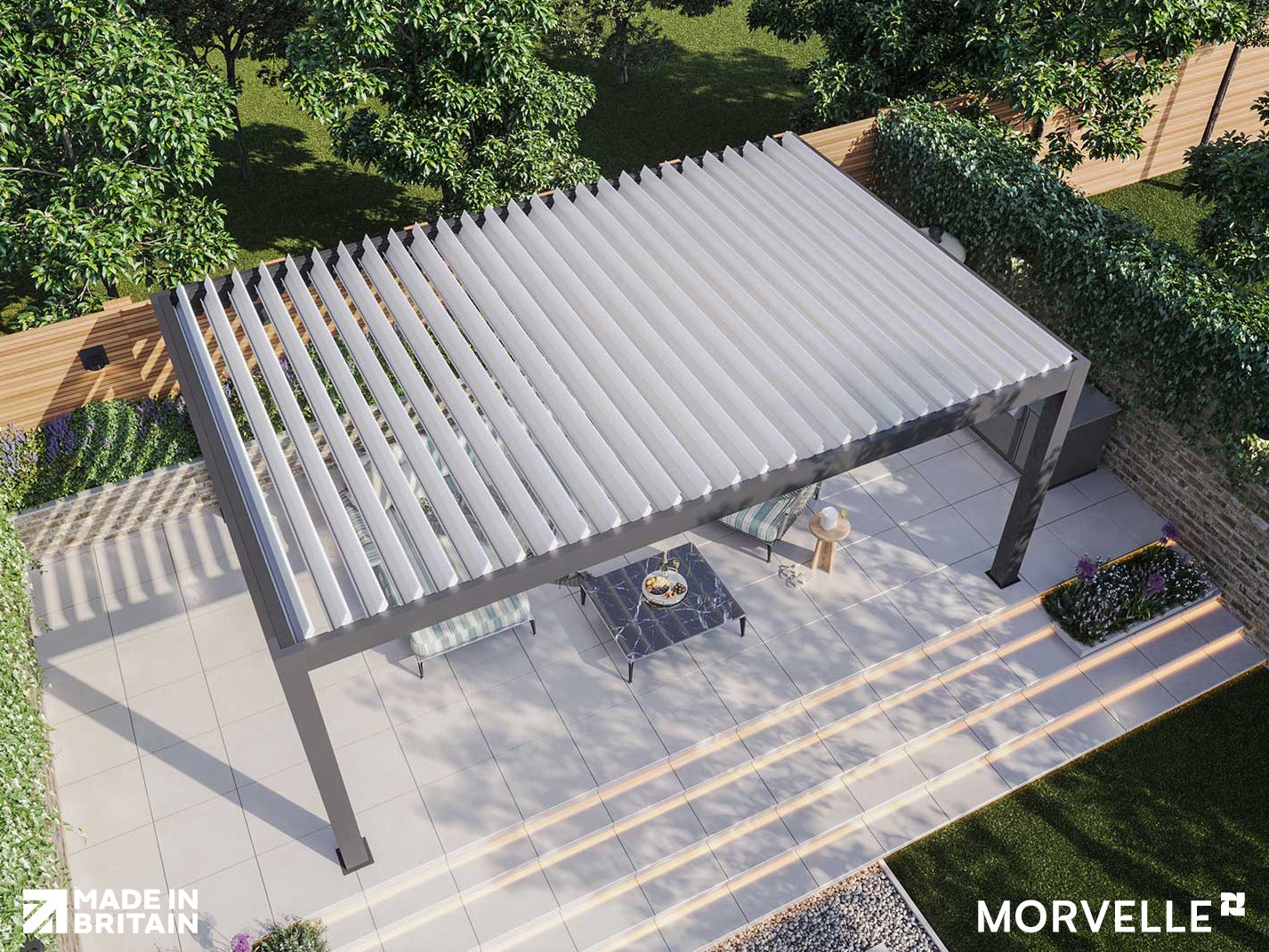

Featuring a clever louvre roof system, you can open the panels to soak up the sun or close them to stay sheltered from the rain. The result? A stylish, weather-resistant outdoor space that’s fully adaptable to your needs.
Each of our bioclimatic pergolas is built to your exact specifications and can be delivered and professionally installed in just a few weeks.
Forget the forecast
It’s time to stop letting the weather change your plans and spoil the fun. Your louvred roof turns your pergola into an all-weather shelter, letting the party go on as long as you’d like.
It uses a built-in trough to collect rainwater and disperse it with minimal impact on your garden.
Warranty
We stand behind every pergola we manufacture with confidence, offering you peace of mind with our comprehensive warranty. Should any issues arise, rest assured that we are here to support you with prompt service and reliable solutions. Our guarantee ensures that your investment is protected, so you can enjoy your new pergola with total confidence.
| Pergola Structure | 5 years |
| Electrical Components | 2 years |
| Zip Blinds | 2 years |
| Louvred Aluminium Panels | 10 years |
| Solid Aluminium Panels | 10 years |
| Glazed Panels | 10 years |
| Sliding Glass Doors | 10 years |
Custom Accessories
We have a wide range of accessories to bolt onto your pergola. Make it your own and enjoy all the added extras to bring your outdoor space every day of the year. Find out more about designing your custom-made pergola now.
-
Sliding Glass Doors
• Length: Max 6m
• Height: Max 2.5m
• Toughened glass thickness: 8mm
• 3 & 5 channel systems available
• Panels stack without overlap for a clean, flush finish
• Flexible protection from wind and rain
• Maximise natural light, whatever the weather
• 10 year warranty
Hardware Colour Options
• Any Huescape™ colour
• RAL7016 Anthracite Grey (matt textured)
Available Extras
• Aluminium / brush strip draft excluders
• Clear PVC draft excluder
• Classic RAL colours, powder coated hardware
• Keyed lock for single lock doors
• Keyed lock for split stack doors
-

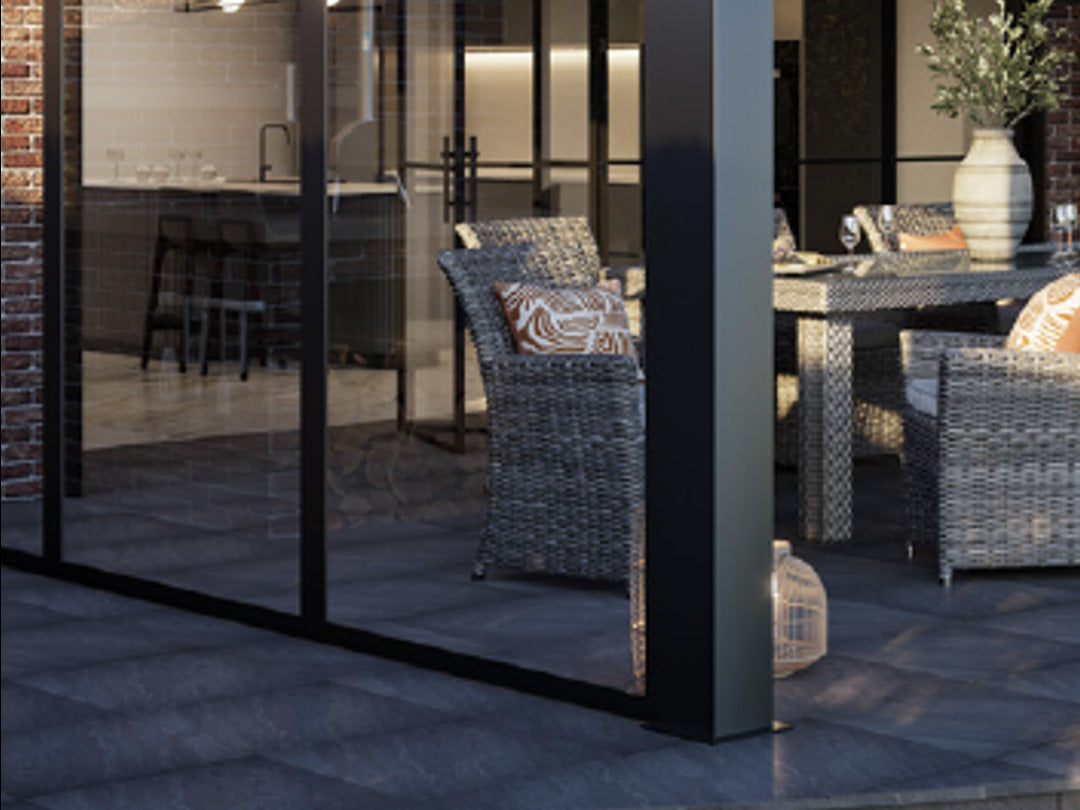

Glazed Panels
Complete wind & rain protection.
• Supplied as an assembled frame, panels supplied loose.
• Length: Max 6m
• Height Max 2.8m (side wall & front wall)
• Toughened glass thickness: 8mm
• 3 & 5 channels systems available
• Panels stack without overlap for a clean, flush finish
• Flexible protection from wind and rain
• Maximise natural light, whatever the weather
• 10 year warranty
Frame Colour Options
• Any Huescape™ colour
• RAL7016 Anthracite Grey (matt textured)
Panel Options
• 80 x 10mm aluminium 'plank' profile or combination of aluminium 'plank' and 8.8mm laminated glass/16mm polycarbonate.
Available Extras
• Classic RAL colours
-
Zip Screen Blinds
• 3% screen fabric for glare protection and privacy
• Manually operated by push/ pulling the hembar
• 2 year warranty
Hardware Options
• Any Huescape™ colour.
Fabric Options
• 5% screen fabric, single fabric colour
Control Options
• Remote control handset (max 4 blinds)
• Remote control wall mounted switch (max 4 blinds)
Available Extras
• Control unit for bioclimatic pergola, for up to 4 blinds
-
Aluminium Louvred Panels
• Length: Max 6m
• Height: Max 2.8m (side wall & front wall) Max 0.85m (wedge)
• Fixed louvred panels providing privacy & shade
• Available in any Huescape™ colour
• Multiple configurations with part-coverage
• 10 year warranty
-
Aluminium Solid Panels
• Length: Max 6m
• Height: Max 2.8m (side wall & front wall)
• Solid panels for total privacy & weather protection
• Available in any Huescape™ colour
• 10 year warranty
-
Infrared Heaters
• 1600-1900W IP65
• Finished in black with silver grille
• CE & UKCA Certified
• 2 year warrenty
LED Lights
Set the mood and control your lighting via a handheld remote. LED lighting can be installed in your new space, with 12V warm white lights that are dimmable to match your required lighting. Each light comes with 5m of cable, concealable within the roof beams and wall plate. The satin chrome casing suits any veranda frame colour and is 50mm in diameter.
More About Optional Extras
-

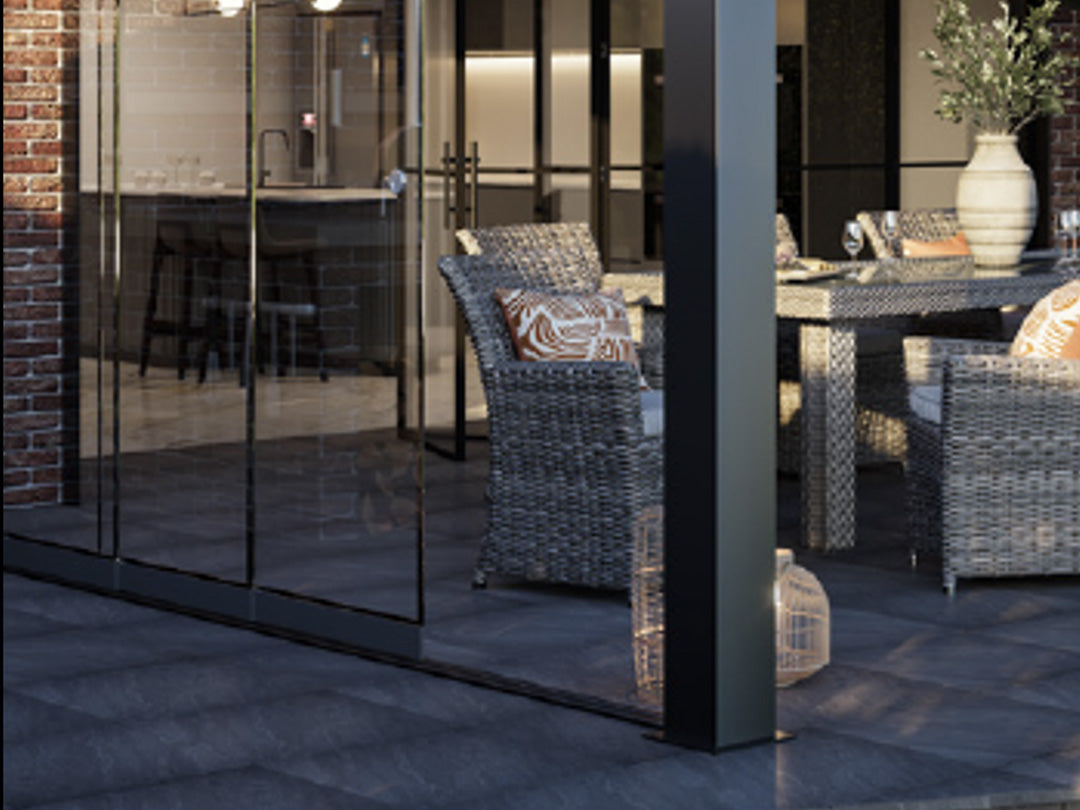

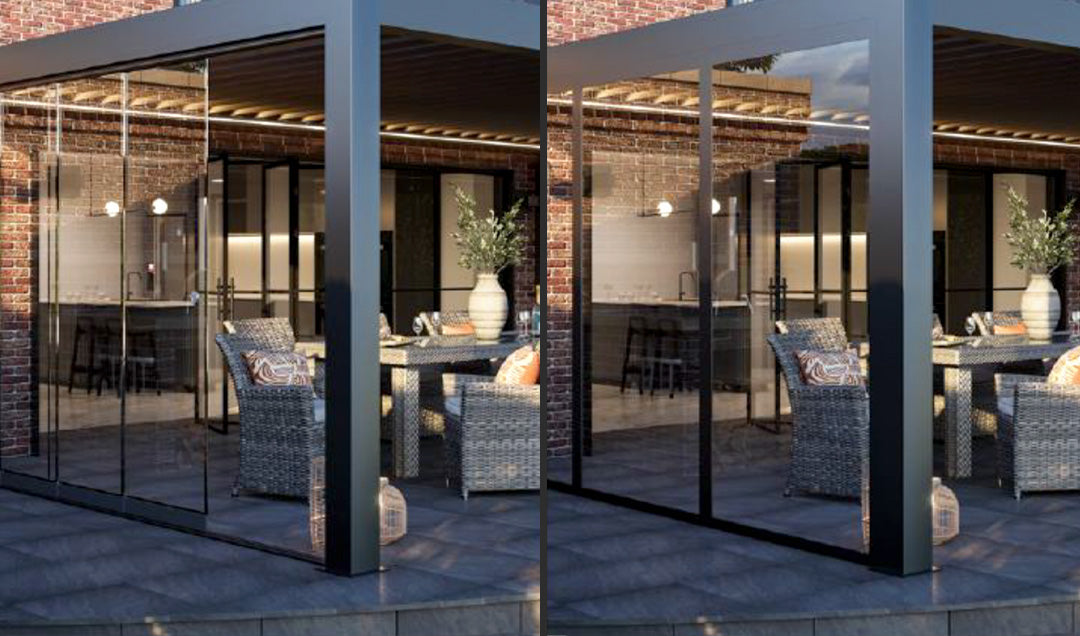

Sliding or Fixed Glass Panels
Maintain natural daylight levels whilst protecting from low temperatures and wet afternoons. Morvelle doors are made from 8mm toughened safety glass, with both 3, 5, 6 or 10 door systems available depending on your requirements. We can also fit a fixed frame with laminated safety glass panels, and aluminium panels that offer enhanced privacy for your garden or protection from unsightly fences and bushes.
-

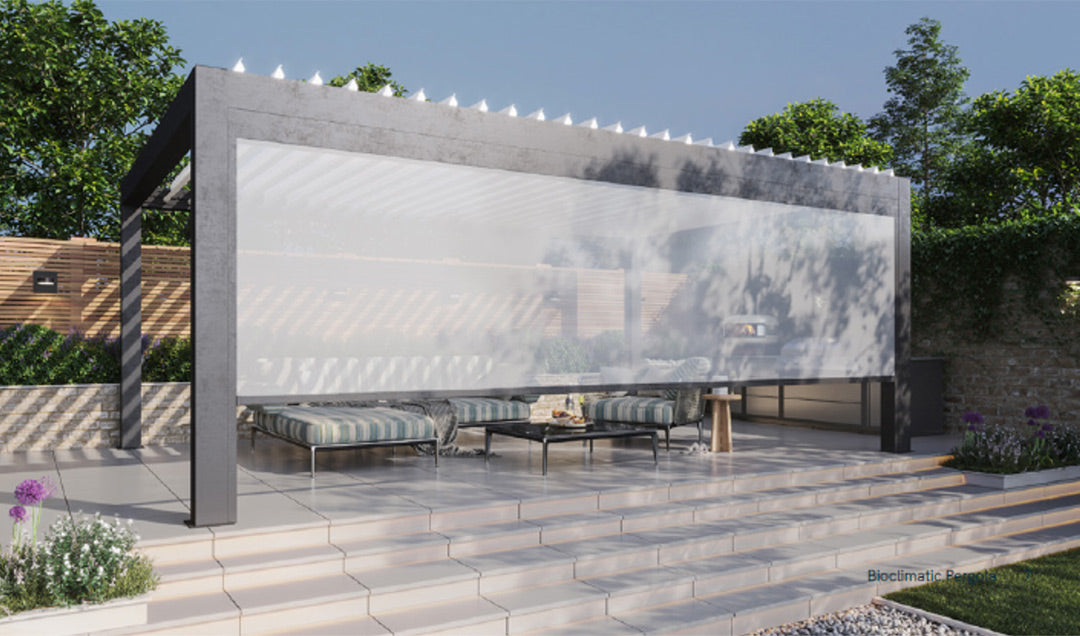

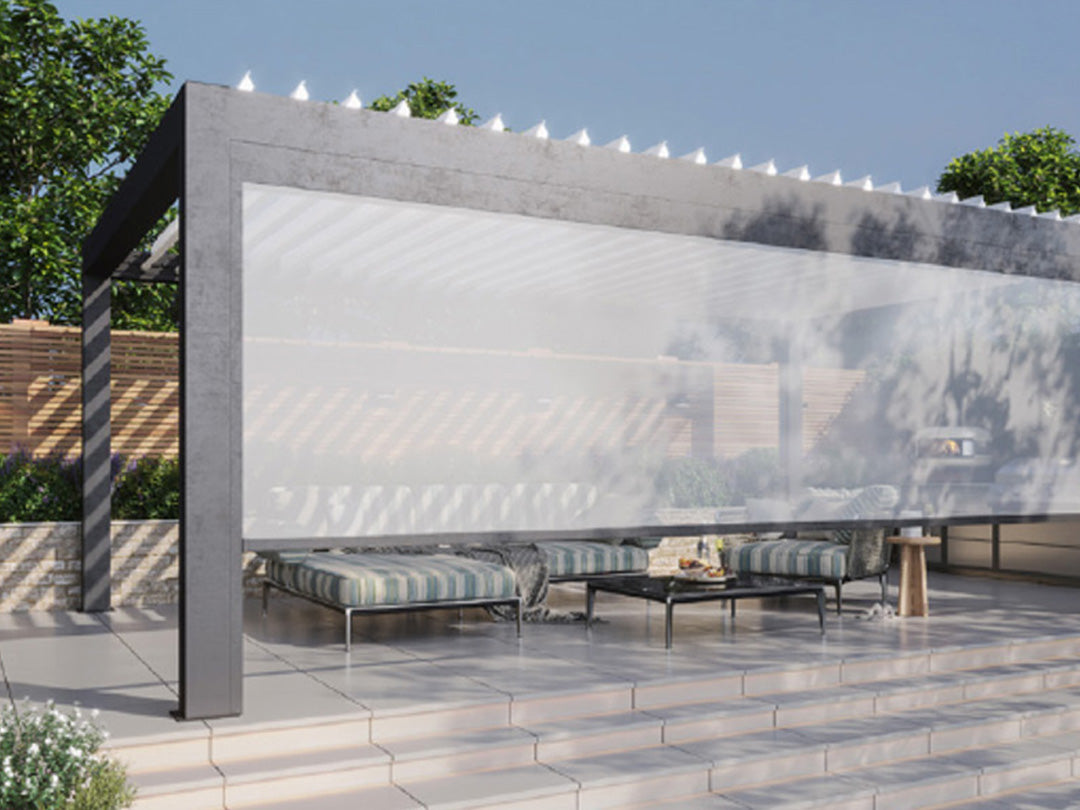

Zip Screen Blinds
Either manual or motorised, our zip screen blinds offer protection from the sun, additional shade and privacy in your personal outdoors. Housed inside an aluminium cassette, the exterior grade mesh fabric is attached via zip, keeping the fabric taut at all times - both functional and aesthetic. When not in use, they can be retracted and completely hidden from view.
Why Eden Grove Outdoor Luxury Living?
-
Delivery in 3-6 weeks
Nobody likes waiting. Our short lead times mean you will be kicking back and relaxing in your new space in very little time.
-
Custom designed perfection
We provide a range of shapes, sizes and styles that are tailored to fit every garden. Yes, even yours.
-
Elegant and affordable
A new space to host, entertain and unwind might be more achievable than you think. Our prices start from just £5,189.
-
Service and warranty
Every Morvelle product comes with a ten-year guarantee. All of our structures are accredited to BS EN1090 and products have been load tested to ensure longevity.
-
Installed in a day
Fast installation, with minimal disruption to your home and garden in the process. Our installation partners are trusted, experienced and friendly.
-
UK Manufacturer
Made to order from our factory in the UK. Technical support and training is never far away.
